XO BEAM - Switch & Crossing Panel System
A unique system that removes and replaces rail switches, crossings, and panels.
Revolutionizing the Method of Removing and Replacing Rail Switches, Crossings, and Panels

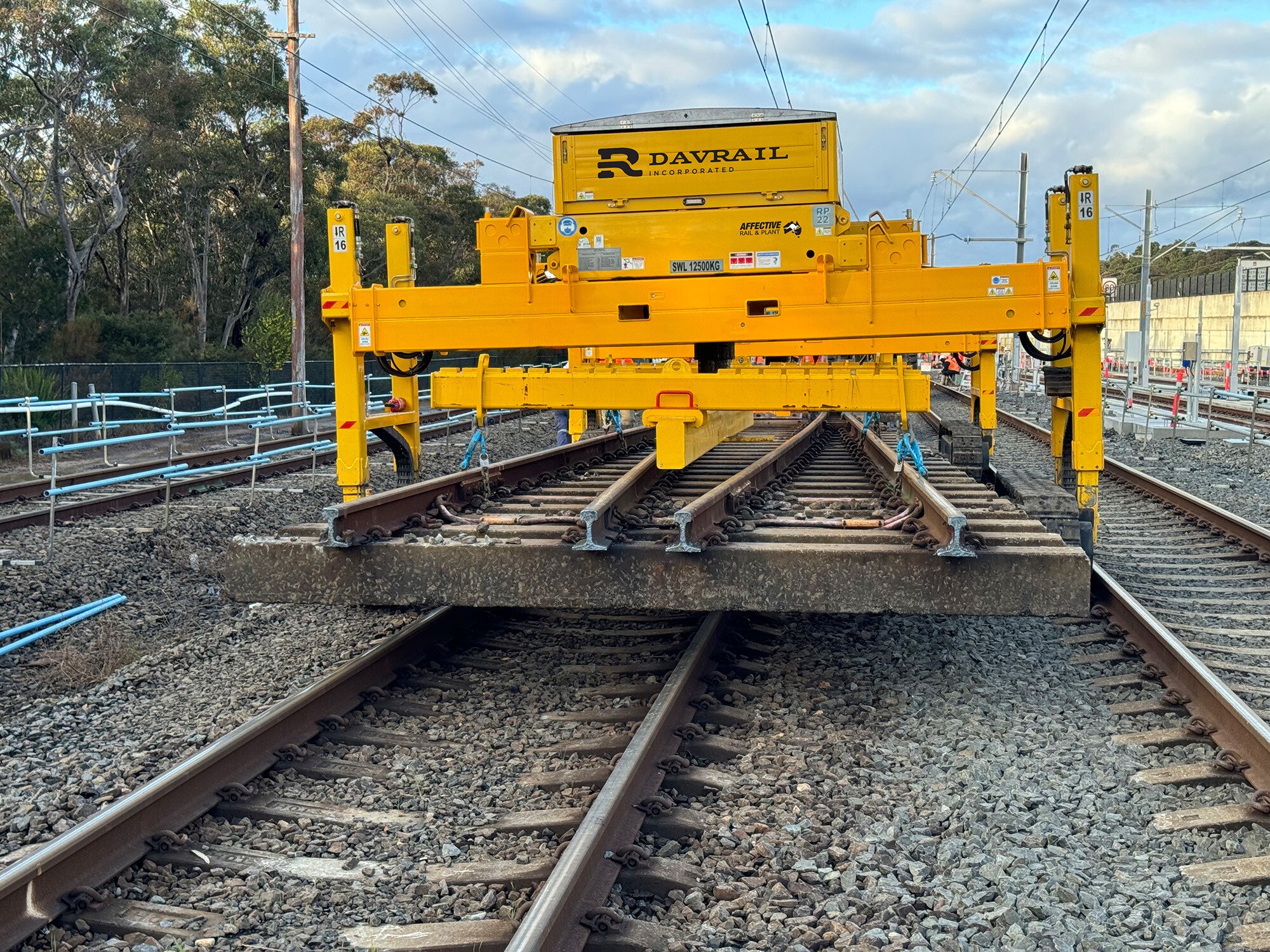

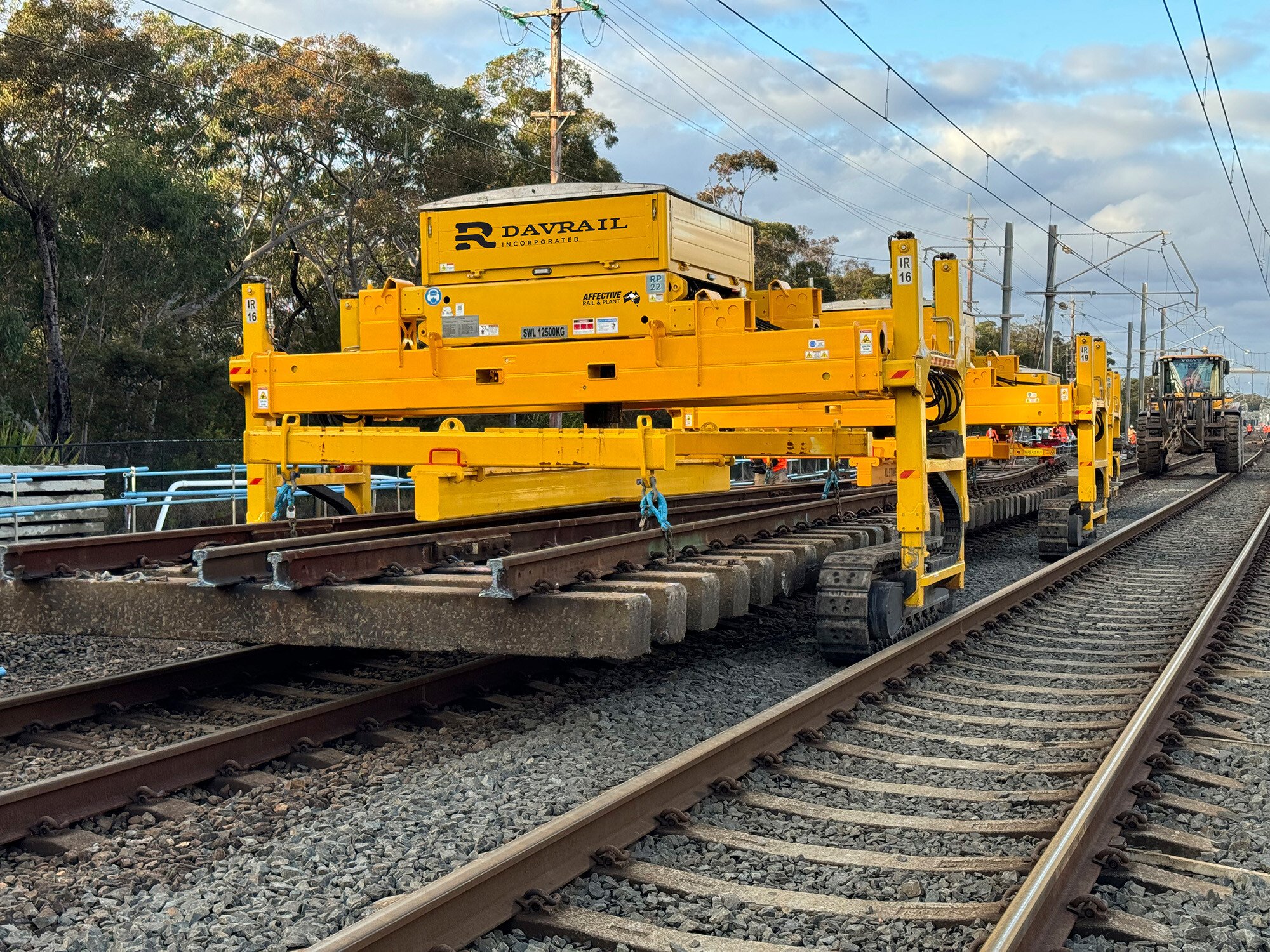

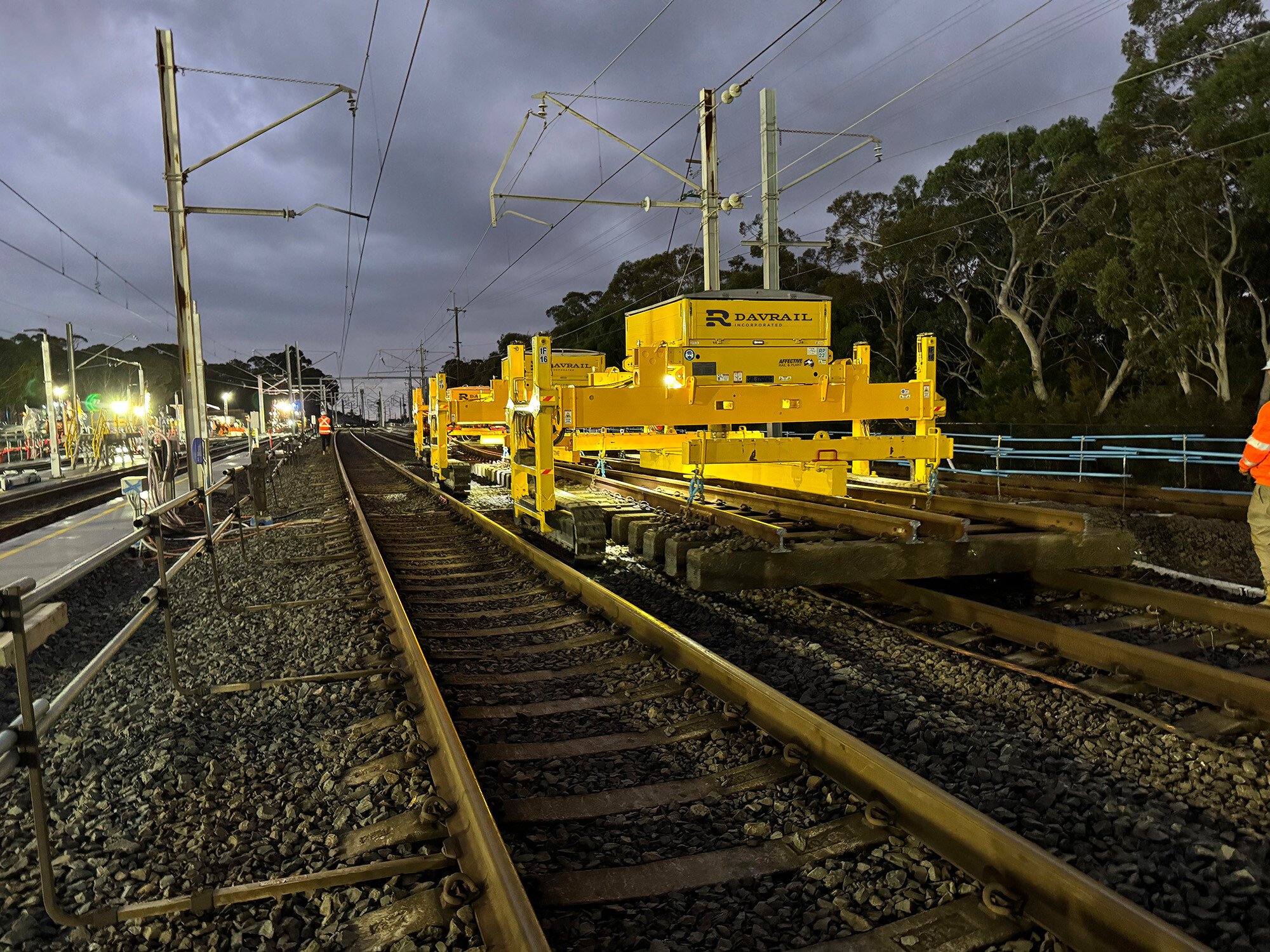

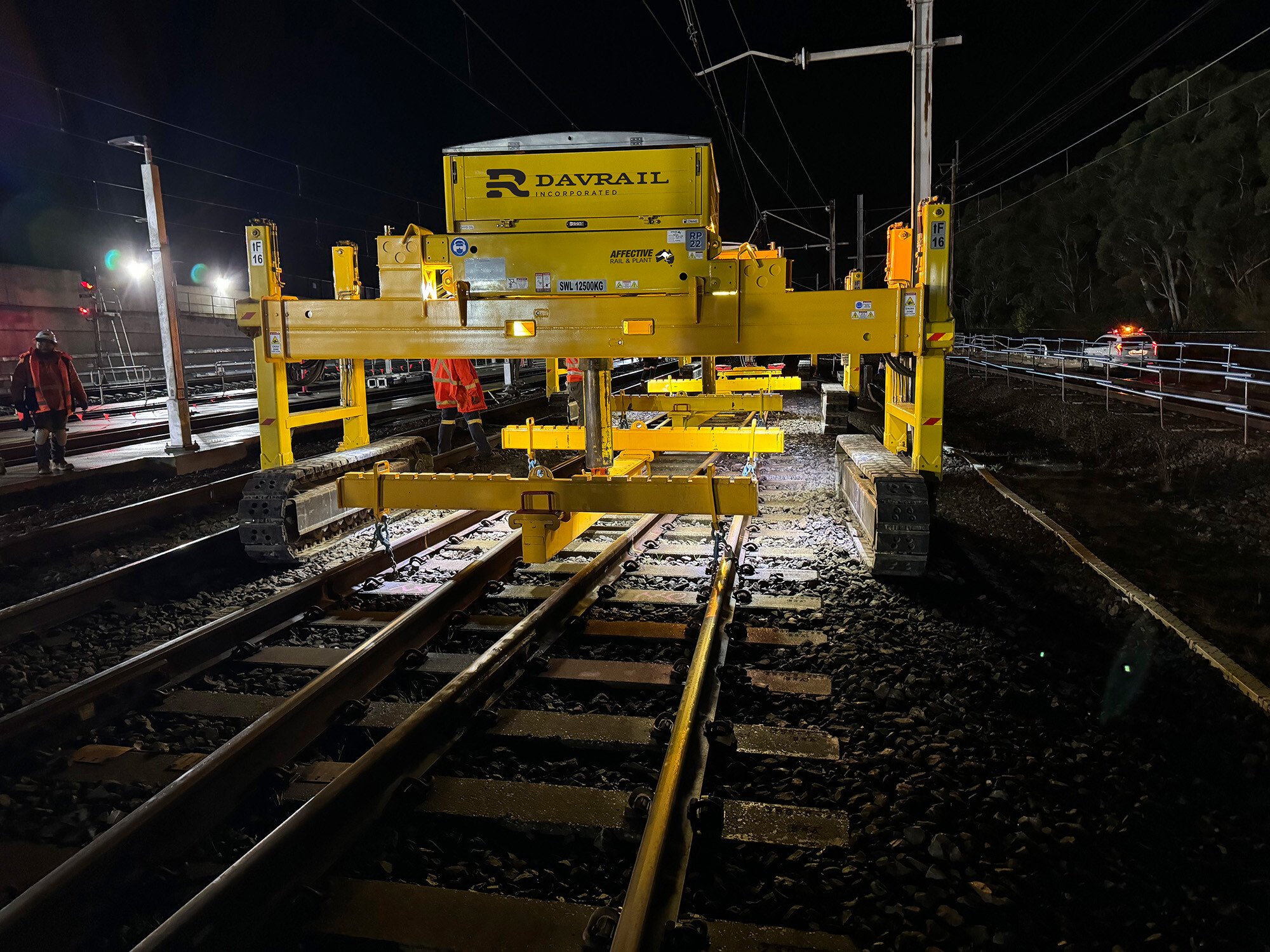

The Switch and Crossing Lifters (XO Beam) are completely remote controlled, eliminating any safe handling issues. The speed of panel removal/installation is critical during limited tracking times to enable rework of the track foundation ahead of replacement of the rail and sleepers.

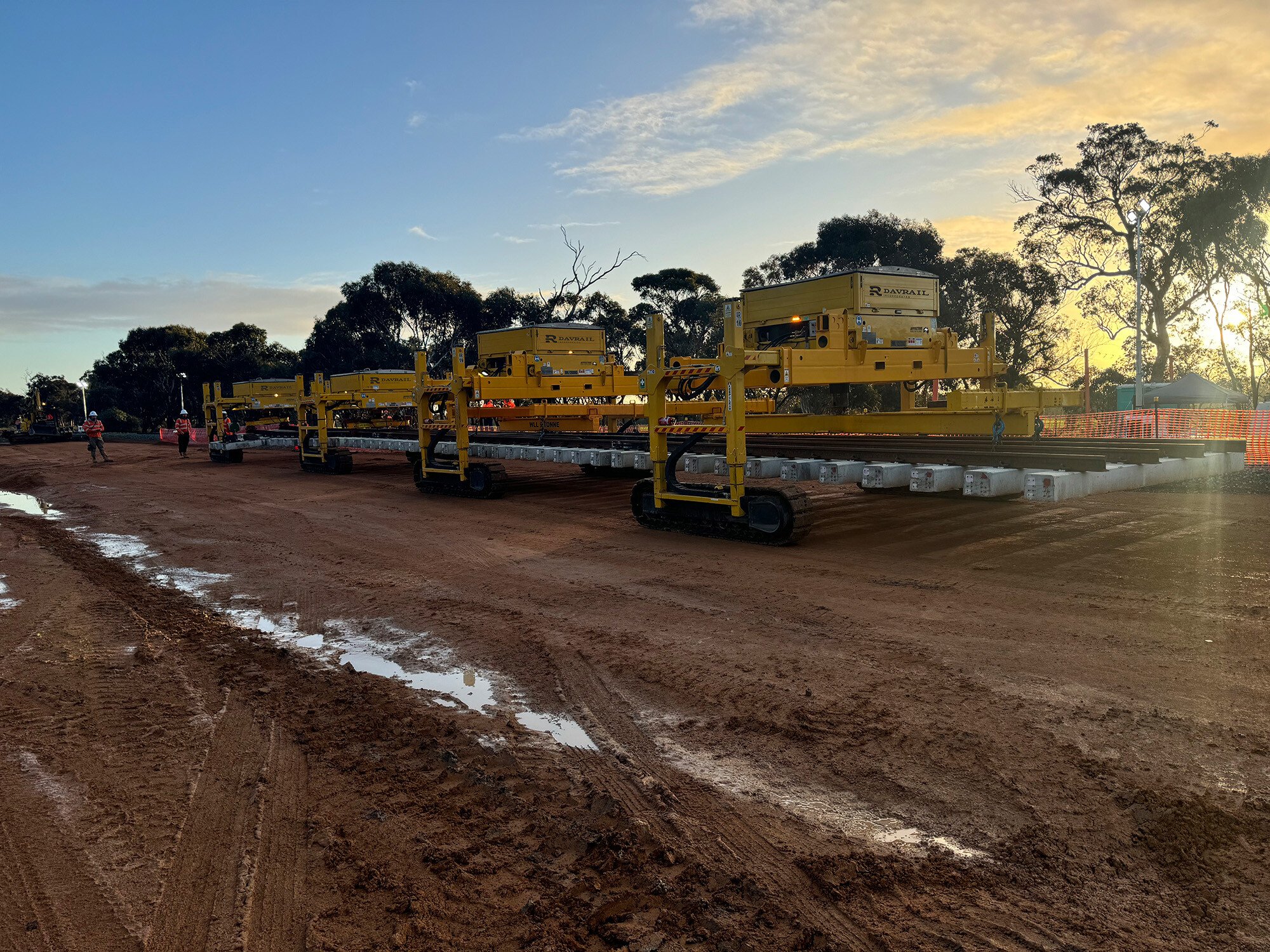

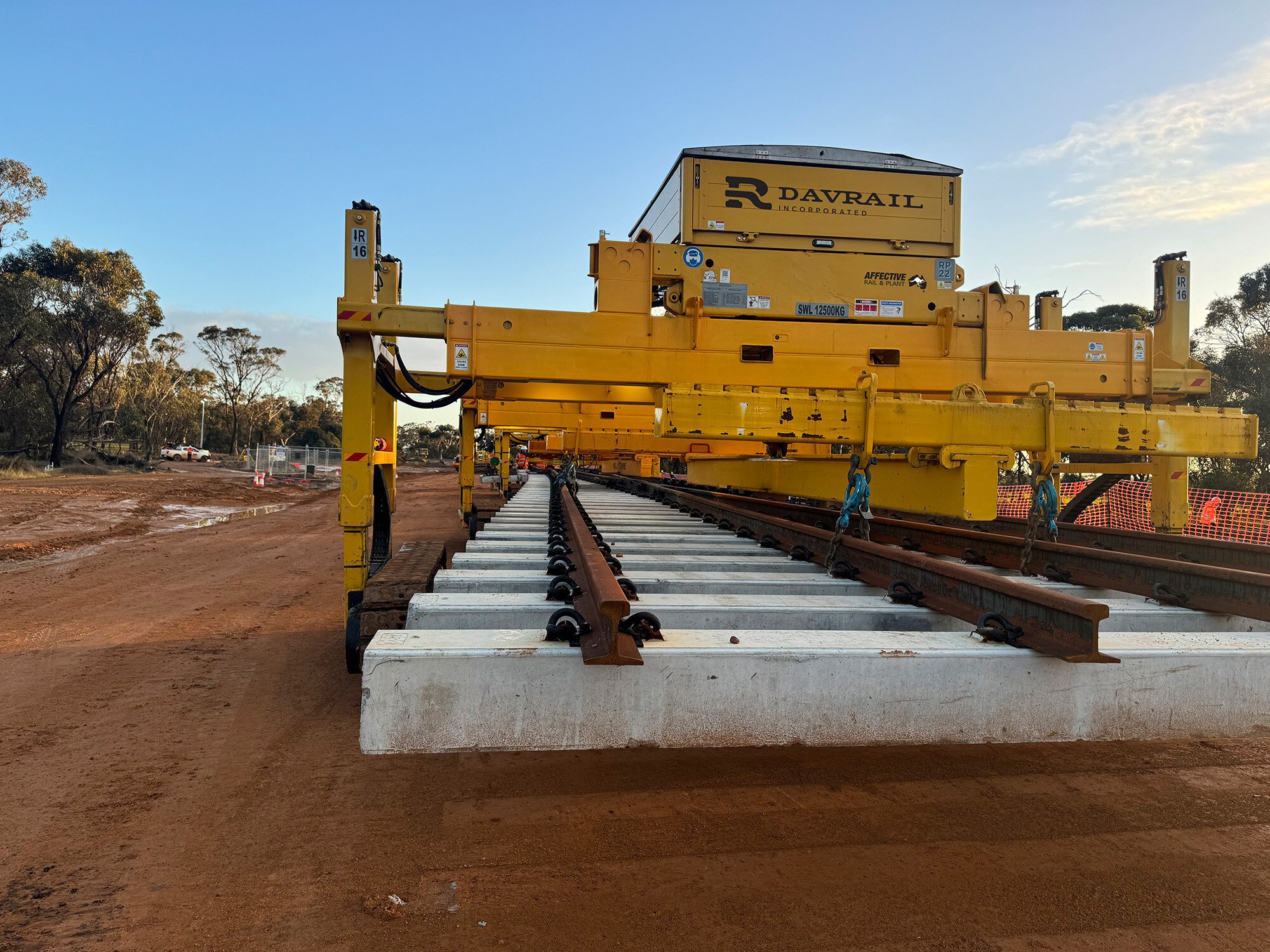

Affective Rail & Plant has designed and developed the Switch and Crossing lifting equipment to create a safe and highly efficient method of removing, transporting and installation of all types of switches and crossing panels, regardless of the track gauge. Used alongside our transport system, large panels can be transported from build area to site efficiently and ready for install.

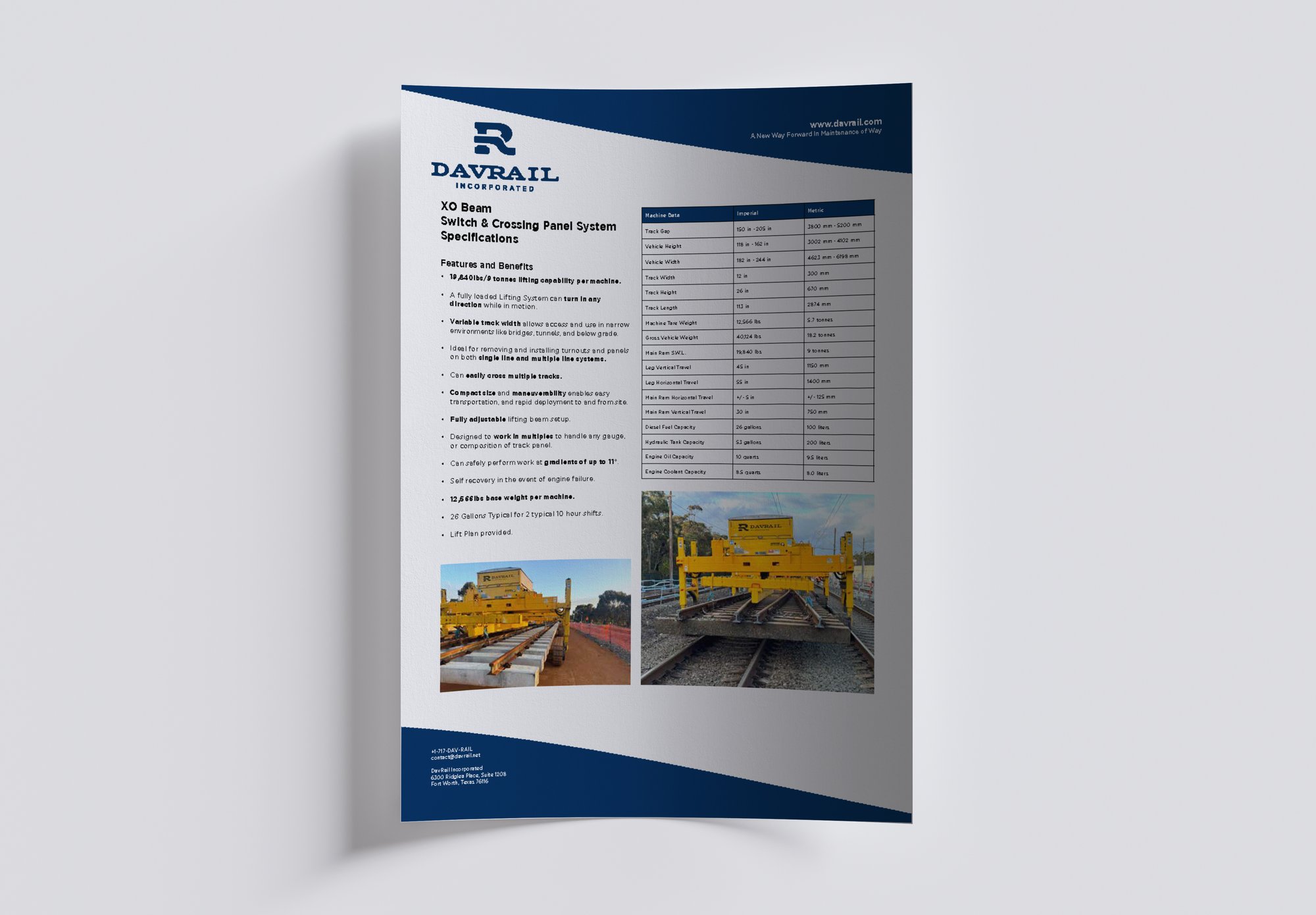

Product Specs
Features & Benefits

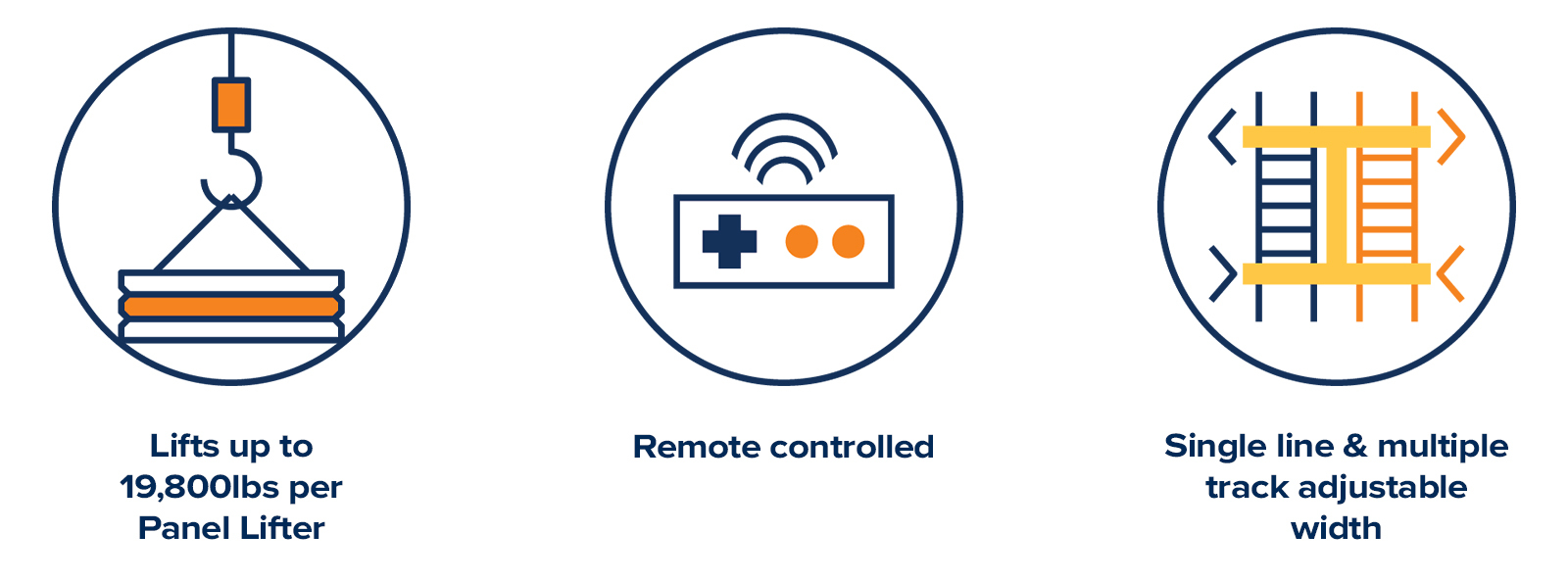

19,840 lbs/9 tonnes lifting capability per machine
Compact size and maneuverability enables easy transportation, rapid deployment to and from site
Self recovery in the event of engine failure
A fully loaded Lifting System can turn in any direction while in motion
Fully adjustable lifting beam setup
12,566 lbs/5.7 tonnes base weight per machine
Variable track width allows access and use in narrow environments such as bridges, tunnels, and below grade
Designed to work in multiples to handle any gauge of track or panel
Diesel Fuel Capacity: 26 gallons/100 liters average over 2 shifts
Ideal for removing and installing panels on both single line and multiple line systems
Can safely perform work at gradients of up to 11°
Lift plan provided
